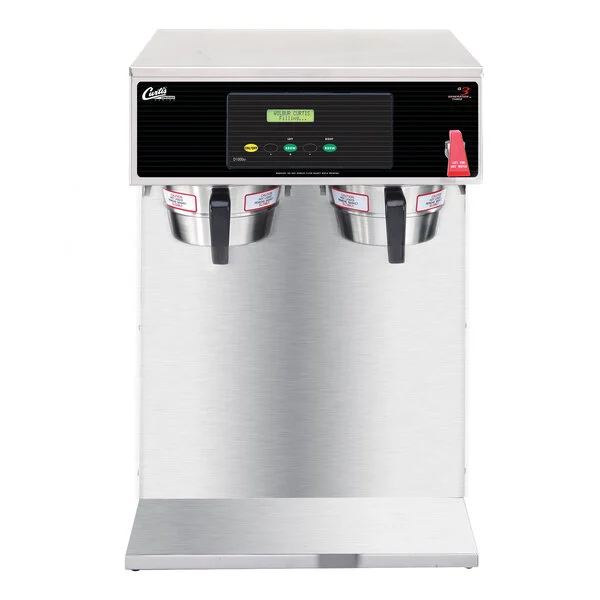

Curtis D1000GH13A000 – 18″ Tall Twin Airpot Coffee Brewer
In Stock
$910.00
In Stock
Maximize your high volume beverage service with the Curtis D1000GH – 18″ Tall Twin Airpot Brewer.
- Twin Station: Simultaneous brewing into two large airpots
- 18″ Clearance: Extra tall profile for high capacity servers
- G3 Technology: Precise digital control over extraction cycles
- Industrial Build: Durable construction for heavy duty environments
- Curtis Warranty: Two year digital board protection
Description
Curtis D1000GH13A000 – High-Clearance Twin Airpot Brewing Suite
The Curtis D1000GH13A000 is an industrial-strength twin brewer designed for professional environments that prioritize airpot mobility and high-clearance dispensing. Sourcing Curtis digital hardware provides your workspace with G3 Digital Control and a specialized 18-inch tall profile. Look, truth is, the D1000GH is the “Clearance King”; it is engineered specifically to accommodate the tallest thermal airpots on the market, allowing for direct-to-vessel brewing that eliminates the need for messy decanter transfers in busy office breakrooms or catering suites.
G3 Precision Control & Advanced Multi-Batch Thermal Logic
The Curtis D1000GH13A000 utilizes variable pulse brewing and pre-infusion to achieve unrivaled extraction clarity. This high-output twin brewer features a large 3.3-gallon heating tank and independent digital controls for each side, allowing for simultaneous brewing of different roasts. The ROI is found in its “Operational Speed”; the unit can produce up to 15 gallons per hour, and the G3 board’s self-diagnostics provide real-time feedback to ensure peak performance during massive-scale hospitality events.
Professional Insights: The 18-inch clearance is the standout feature here—it solves the logistics of filling tall servers without needing a separate stand. The G3 board is legendary for its reliability and ease of service; the modular design means parts can be swapped quickly if needed. For large offices or convention centers, the ability to brew two different airpots at once is a major time-saver.
Technical Specifications & Performance Data
- Output Capacity: 15.0 Gallons Per Hour (approx. 240 cups/hr)
- Clearance: 18″ (Optimized for Large-Capacity Thermal Airpots)
- Interface: Digital G3 Control Module with Tactile Buttons
- Extraction Tech: Pulse-Brew, Pre-Infusion, and Volume Calibration
- Tank Volume: 3.3 Gallon High-Capacity Heating Tank
- Electrical Specs: 220V / 5100W-7600W / 23.0-32.0 Amps (Hardwired Required)
Curtis D1000GH13A000 Application & In The Box
- Ideal For: Convention centers, corporate breakrooms, and catering halls requiring high-clearance airpot service.
- In The Box: D1000GH Twin Brewer, Two Stainless Steel Funnels, and Technical Setup Guide.
Curtis D1000GH13A000 18" Tall Twin Airpot Coffee Brewer
Shipping Weight: 56.5 lb.
Width: 16 1/2 Inches
Depth: 18 Inches
Height: 29 1/4 Inches
Amps: 23 Amps
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 220 Volts
Wattage: 5,050 Watts
Brewer Type: Airpot
Coffee Filter Size: 9 3/4" x 4 1/4"-4 1/2"
Control Type: Digital
Features: Hot Water Faucet Made in America NSF Listed
Output: 14 Gallons Per Hour
Plug Type: Hardwire
Power Type: Electric
Pressure: 20 - 90 PSI
Style: Double
Type: Coffee Brewers
Water Source: Direct Connection
Technical Questions Regarding the Curtis D1000GH13A000 Twin Brewer
What is the maximum hourly coffee production capacity of this unit?
The system generates 12 to 15 gallons of coffee per hour for high volume service. Utilize the twin brewing heads to fill two separate 18 inch tall airpots simultaneously during peak hours. High capacity output ensures that large crowds are served efficiently without the need for additional brewing equipment.
What are the specific electrical and water connection requirements for installation?
This unit requires a 220 volt single phase connection and a 0.25 inch male flare water inlet. Install a dedicated water filter to remove sediment and protect the heavy duty internal solenoid valves. Proper infrastructure ensures the heating system maintains the target temperature for consistent extraction during every cycle.
How can users ensure long term durability of the internal components?
Perform a weekly descaling procedure to prevent mineral buildup on the heating elements and water sensors. Wipe the stainless steel exterior with a soft cloth to maintain the industrial grade finish and appearance. Regular maintenance cycles reduce the risk of mechanical failure and extend the overall lifespan of the brewer.
How does the digital controller manage the coffee brewing temperature?
The digital control module monitors the water heat to ensure it remains at the precise set point. Program the pulse brew settings to optimize the saturation of the grounds for a balanced flavor profile. Accurate thermal management provides a reliable beverage quality that satisfies the expectations of every customer served.
Why is Muldepot.com the preferred source for purchasing this industrial equipment?
Muldepot.com provides this Curtis equipment with a 60-day returns policy to ensure your total business satisfaction. Reach out to our technical staff for guidance on selecting the compatible airpots for this tall model. Our Price Match guarantee ensures that you receive the best value for your industrial kitchen investment.
