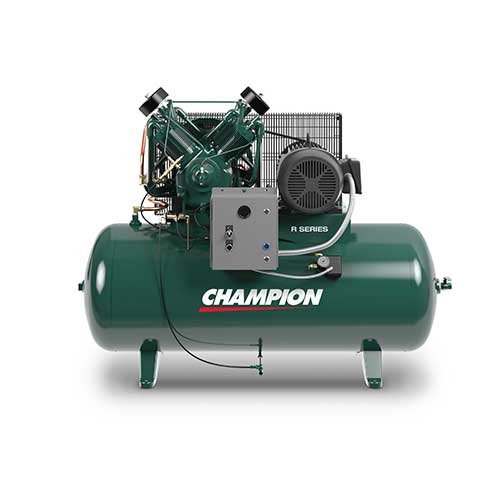

Champion HR30-24 Air Compressor – 30HP R-Series

Champion HR30-24 R-Series: The 30-HP Heavy Industrial Pressure-Lubricated Powerhouse

The Champion HR30-24 R-Series is a monumental industrial air solution designed for large-scale facilities that demand the highest volume of compressed air from a single reciprocating pump. Featuring a massive 30-HP high-torque motor mounted on an oversized 240-gallon horizontal ASME receiver, this unit is engineered for unyielding industrial endurance. By integrating this heavy-duty system into your infrastructure, Muldepot.com ensures your facility maintains total pressure stability even under the most grueling 24/7 production schedules. The R-Series is the primary choice for operations that require absolute reliability where rotary screw systems are not feasible.

The technical core of the HR30-24 is the legendary R-Series pump, a pressure-lubricated masterpiece that delivers an exceptional 103 CFM at 175 PSI. As a premier solution within our industrial-scale compressed air solutions, this unit features a positive displacement oil pump that forces filtered lubrication to every critical internal bearing. Powered by a high-efficiency NEMA-rated 30-HP motor, this system is built to handle 100% duty cycles without performance degradation. The massive 240-gallon tank acts as a critical buffer, effectively minimizing motor startup frequency and providing a consistent, high-volume air stream for massive tool arrays and automated manufacturing lines.

Champion HR30-24 R-Series Engineering Specifications

• Motor Power: 30-HP High-Efficiency Industrial NEMA Motor.
• Pump Technology: R-Series pressure-lubricated heavy-duty reciprocating pump.
• Air Delivery: Massive 103 CFM @ 175 PSI for high-output demand.
• Tank Capacity: 240-Gallon ASME-certified horizontal receiver.
• Lubrication System: Positive displacement oil pump with automotive-style filtration.
• Electrical Phase: 230/460V Three-Phase industrial grade.
• Construction: Solid cast-iron cylinders and domed piston heads.
• Cooling System: Deep-finned intercoolers for maximum thermal management.
• Valving: High-flow stainless steel disc valves for volumetric efficiency.
• Warranty: Comprehensive 5-Year factory-backed pump protection.

“Replacing our aging air system with the Champion HR30-24 has been a pivotal upgrade for our heavy equipment manufacturing plant. With 103 CFM on tap and the massive 240-gallon buffer, our high-demand sandblasting and CNC stations never experience pressure drops. The pressure-lubricated R-Series pump runs remarkably cool, and the build quality is clearly designed for decades of service rather than just years.”

Advanced Durability & Lifecycle Engineering

In the world of high-capacity air delivery, the Champion HR30-24 stands alone by utilizing pressure lubrication technology to combat internal friction wear. Unlike standard splash units, this system forces filtered oil directly to the crankshaft and connecting rod bearings, ensuring a long-term operational lifecycle even in high-heat environments. The solid cast-iron construction prevents thermal warping, while the oversized 240-gallon tank reduces the mechanical stress caused by frequent cycling. This strategic engineering focus eliminates moisture-driven corrosion and bearing fatigue, ensuring your facility’s long-term ROI and minimizing maintenance overhead.

Strategic Industry Use Cases

• Large-scale Manufacturing Plants with continuous 24/7 automated lines.
• Heavy Industrial Sandblasting facilities requiring massive CFM volumes.
• Major Fleet and Rail Maintenance hubs for heavy pneumatic tools.
• Commercial Metal Fabrication centers with high-demand air arrays.
• Mining and Construction support facilities requiring high-pressure reliability.

Secure Your Industrial Air Infrastructure

The Champion HR30-24 R-Series represents the pinnacle of reciprocating air technology, delivering the power of a small rotary screw with the rugged simplicity of a piston pump. By choosing the HR30-24, you are securing the future of your facility’s productivity with a system built for the most punishing industrial applications. Order your Champion HR30-24 from Muldepot.com today to benefit from our nationwide industrial shipping and expert technical support. Invest in the strength and reliability that only a 30-HP R-Series system can provide.
