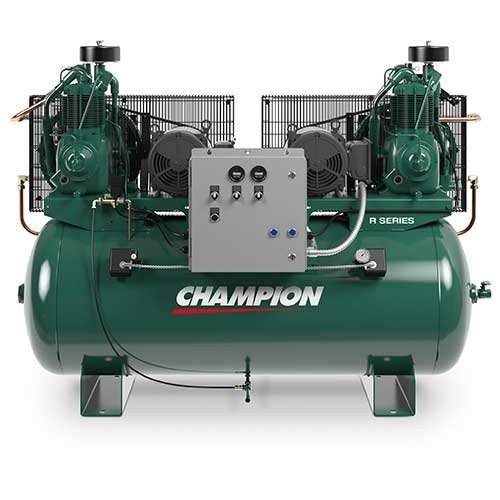

Champion HR25D-25 Air Compressor – 25HP R-Series

Champion HR25D-25 25HP 250-Gallon Duplex Air Compressor for High-Capacity Industrial Redundancy

The Champion HR25D-25 Air Compressor is the definitive heavy-duty solution for large-scale industrial facilities that require an absolute fail-safe air supply for 24/7 operations. By mounting two legendary R-Series R-70 pumps on an oversized 250-gallon horizontal receiver, this duplex configuration provides reliable redundant power for the most demanding pneumatic tools. Industrial plant managers trust the R-Series platform to maintain uninterrupted production workflows even during peak demand periods or while one pump undergoes routine maintenance. Choosing this model from Champion industrial compressors ensures that your facility has a consistent air reserve capable of delivering high-volume air for automated manufacturing lines.

The Champion HR25D-25 Air Compressor features dual motors (providing a total of 25HP) and rugged R-Series reciprocating pumps that deliver an impressive 181.4 CFM at 175 PSI. This twin-motor setup optimizes pump cooling cycles by utilizing an alternating lead/lag control system, which effectively doubles the service life of internal components by sharing the workload. For facilities sourcing Champion duplex systems, the included premium magnetic starters provide superior motor protection and simplified electrical integration for 25HP industrial loads. The R-Series pump excels at reducing thermal stress, ensuring that air tool efficiency remains stable during continuous high-output sandblasting or large-scale automotive painting.

Champion HR25D-25 Industrial Performance Breakdown

• Total Horsepower: 25 HP total output from dual high-efficiency motors.
• Volume Output: Combined 181.4 CFM delivery at 175 PSI pressure.
• Storage Tank: Extra-large 250-Gallon horizontal ASME receiver for maximum buffer.
• Pump Build: Two-stage R-Series cast iron pumps for heavy-duty service.
• Peak Pressure: Reaches up to 175 PSI for demanding industrial tools.
• Duty Cycle: Rated for 100-Percent continuous industrial duty operation.
• Start Protection: Includes dual pre-wired premium magnetic starters.
• Lubrication: Reliable splash-lubricated design with cast iron crankcase.
• Valve System: High-flow stainless steel disc valves for longevity and efficiency.
• Warranty Support: Industry-leading 3-Year pump and 1-year package factory warranty.

To be honest, our technical crew at MulDepot.com considers the HR25D-25 a legendary workhorse because the 250-gallon tank provides a buffer that is almost unmatched in this class. The redundancy of a 25HP duplex setup is a massive safety net for your production, though you definitely need a serious concrete pad and high-amperage 3-phase electrical service to install it properly. This isn’t just a basic shop tool; it is a high-volume industrial asset for facilities that want to buy their last compressor first. We’ve seen these R70 pumps stay in service for decades with just basic valve maintenance.

Redundant Duplex Engineering and Internal Build

• The twin pump configuration ensures your shop stays fully operational even if one motor requires scheduled maintenance
• Mechanical friction and noise are suppressed significantly by precision balanced flywheels while extending the overall valve life
• Every unit is built with ductile iron crankshafts that provide the extra strength needed to handle high-torque industrial cycles
• Internal temperatures are managed by large diameter finned intercoolers that increase volumetric efficiency
• Operational safety is guaranteed as each ASME certified tank meets the most stringent United States industrial standards

Ideal Applications for Continuous Air Operations

• Perfectly suited for large-scale manufacturing plants requiring a stable air supply for automated assembly robots
• Essential for heavy fabrication facilities utilizing multiple 1-inch impact wrenches and pneumatic grinders
• Provides the stable high-volume CFM needed for industrial sandblasting booths with continuous abrasive flow
• A smart choice for regional distribution centers that require rapid recovery for high-frequency service bays
• Guarantees the sustained pressure required for automotive coating facilities with large-scale multi-gun spray systems

Stop letting mechanical failures dictate your production schedule and upgrade to a system built for zero downtime industrial operations. The Champion HR25D-25 offers the ultimate redundant air power that modern high-volume shops require to stay competitive. Trust our experts at MulDepot.com to deliver long-lasting professional equipment that keeps your business moving forward every single day.
