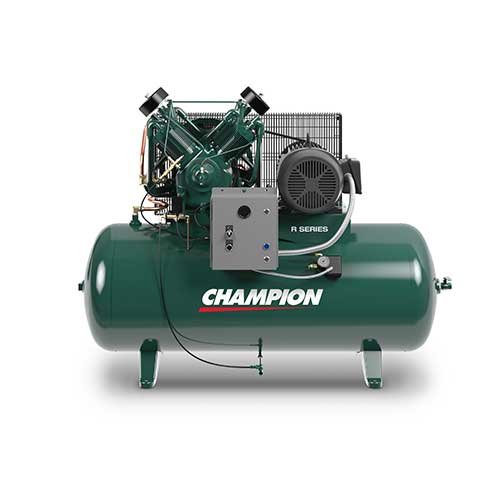

Champion HR20-25 Air Compressor – 20HP R-Series

Champion HR20-25 R-Series: 20-HP Pressure-Lubricated Industrial Giant with 250-Gallon Tank

The Champion HR20-25 R-Series represents the pinnacle of reciprocating air technology, engineered for massive industrial environments where air demand is constant and downtime is not an option. Featuring a heavy-duty 20-HP industrial motor and the world-renowned R-Series pressure-lubricated pump, this unit is mounted on an oversized 250-gallon horizontal ASME receiver. By integrating this high-capacity system through our platform, you secure an unyielding pneumatic infrastructure capable of delivering absolute pressure stability for large-scale sandblasting, automated manufacturing, and heavy fabrication tool arrays.

The technical core of the HR20-25 is its professional two-stage pump, which delivers an impressive 70.1 CFM at 175 PSI. As a cornerstone of our heavy-duty industrial air compressor collection, this model utilizes a positive displacement oil pump that forces filtered lubrication directly to every critical bearing. This pressure lubrication technology allows the HR20-25 to operate at significantly lower temperatures than competitive splash-lubricated units, drastically extending the operational lifecycle of the pump. The massive 250-gallon tank provides torque stability and an enormous air reserve, effectively eliminating the frequent motor cycling that can lead to electrical fatigue in smaller systems.

Champion HR20-25 R-Series Technical Engineering Specifications

• Motor Horsepower: 20-HP High-Efficiency NEMA-Rated Industrial Motor.
• Pump Design: R-Series Pressure-Lubricated Two-Stage Cast Iron.
• Air Delivery: 70.1 CFM @ 175 PSI (High-Volume Industrial Output).
• Tank Capacity: 250-Gallon ASME-certified horizontal receiver.
• Lubrication System: Positive displacement oil pump with automotive-style filtration.
• Electrical Phase: 230/460V Three-Phase industrial grade.
• Cooling Technology: Deep-finned intercoolers for maximum heat dissipation.
• Valving System: High-flow stainless steel disc valves for volumetric efficiency.
• Safety Compliance: UL/CSA certified electricals and ASME-coded pressure vessel.
• Warranty: Industry-leading 5-Year factory-backed pump protection.

“The Champion HR20-25 has been the backbone of our structural steel facility for years. The 70.1 CFM output handles our multiple sandblasting cabinets simultaneously without ever gasping for air. We specifically chose the 250-gallon tank version for the extra air buffer, and it has significantly reduced the wear on our magnetic starters. It’s a quiet, cool-running workhorse that handles 100% duty cycles better than anything else we’ve tried.”

Advanced Durability & Lifecycle Engineering

The Champion HR20-25 is engineered to withstand thermal warping and mechanical stress by utilizing solid cast-iron construction across all pump components. The proprietary pressure lubrication system prevents premature bearing fatigue by ensuring that every stroke of the piston is supported by clean, filtered oil. This system effectively manages the heat generated during 100% duty cycles, reducing moisture-driven corrosion within the 250-gallon tank. This meticulous focus on lubrication and thermal management ensures a long-term operational lifecycle, providing a superior ROI for manufacturing hubs that operate on multi-shift schedules.

Strategic Industry Use Cases

• Heavy Structural Steel Fabrication and industrial sandblasting.
• Large-scale Automotive Assembly Plants and robotic lines.
• Industrial CNC Machining Hubs with high-demand tool arrays.
• Commercial Fleet and Rail Maintenance facilities.
• Mining and Agricultural support operations requiring massive air reserves.

Secure Your Industrial Air Infrastructure

The Champion HR20-25 R-Series is the ultimate solution for facilities that require the highest volume of air from a reciprocating system. By combining 20-HP power with a 250-gallon storage reserve, you eliminate pressure fluctuations and protect your production timeline. Order your Champion HR20-25 from Muldepot.com today to benefit from our nationwide industrial shipping and specialized technical support. Invest in the strength and redundancy that only an R-Series pressure-lubricated system can deliver.
