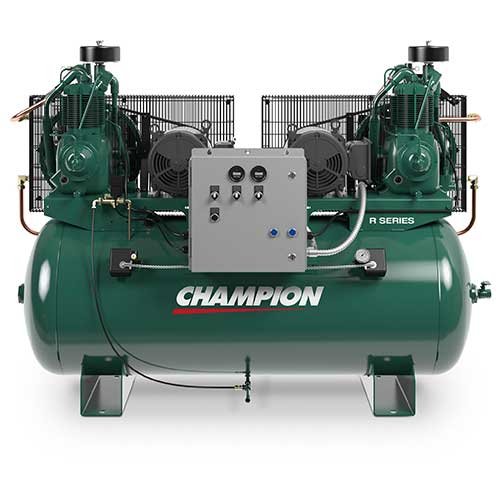

Champion HR15DF-24 Air Compressor – 15HP R-Series

Champion HR15DF-24 15HP 240-Gallon Duplex Air Compressor | R-Series Splash Lubricated

The Champion HR15DF-24 Air Compressor is a heavy-duty industrial powerhouse designed for facilities that demand a massive air reserve and the built-in redundancy of a duplex system. By mounting two 7.5HP R-Series pumps on an oversized 240-gallon horizontal ASME tank, this unit provides a fail-safe air supply for high-output manufacturing. The R-Series is legendary for its rugged, splash-lubricated design, offering a cost-effective yet incredibly durable solution for shops that require 15HP of total air power.

Engineered for long-term reliability, the HR15DF-24 utilizes dual pumps that operate on an alternating lead/lag system. This configuration ensures that the workload is shared equally between both 7.5HP motors, effectively doubling the service life of the internal components. The massive 240-gallon receiver acts as a primary buffer, significantly reducing motor cycling and energy consumption, which is critical for facilities running multiple shifts or high-CFM pneumatic equipment.

Champion HR15DF-24 Technical Performance Breakdown

• Horsepower: Dual 7.5 HP motors providing 15 HP total industrial power.
• Air Delivery: High-volume CFM output designed for multi-tool industrial loads.
• Storage Tank: Massive 240-Gallon horizontal ASME certified tank for maximum air reserves.
• Pump Build: R-Series cast iron, two-stage, splash-lubricated pumps for proven durability.
• Pressure Range: Capable of maintaining high-pressure loads up to 175 PSI.
• Duty Cycle: Rated for 100-Percent continuous industrial duty operation.
• Start Protection: Features dual pre-wired premium magnetic starters.
• Valve System: Multi-finned cylinders and high-efficiency stainless steel valves.

To be honest, our technical crew at MulDepot.com considers the HR15DF-24 the “marathon runner” of the R-Series. The 240-gallon tank is so large that it practically eliminates pressure fluctuations during heavy sandblasting or painting. While the R-Series uses splash lubrication rather than a pressure pump, its simplicity makes it much easier to maintain for shops without a dedicated service team. If you are interested in comparing this splash-lube model to our premium pressure-lubricated units, feel free to browse our industrial air compressors category for the PL-Series equivalent.

Duplex Engineering and Fail-Safe Operation

The Champion HR15DF-24 provides peace of mind through its redundant design. If one pump requires scheduled maintenance, the other can continue to supply air at 50% capacity, preventing a total production shutdown. This level of reliability is why our curated industrial equipment catalog frequently recommends the HR-Series for fabrication shops and automotive plants that cannot afford zero-air scenarios. The rugged cast iron construction and slow-speed pumps ensure that this unit stays in service for decades.

• Alternating Control: Lead/lag alternator ensures equal wear across both 7.5HP pumps.
• Ductile Iron Crankshaft: Provides the extra strength needed for high-torque industrial cycles.
• Finned Intercoolers: Efficiently lowers air temperatures between stages to reduce moisture.
• Oversized Flywheel: Promotes higher airflow across the pump for secondary cooling.

Ideal High-Volume Applications

• Large-scale automotive body shops running multiple high-demand spray booths.
• Heavy steel fabrication facilities utilizing 1-inch impact wrenches and grinders.
• Industrial manufacturing plants with automated pneumatic assembly lines.
• Regional distribution centers for rapid recovery in high-frequency service bays.

The Champion HR15DF-24 offers the ultimate combination of massive storage and redundant power. With its R-Series durability and 240-gallon capacity, it is a strategic asset for any high-volume industrial operation. Contact us today for 3-phase electrical specifications and freight shipping details for this 15HP duplex powerhouse.
