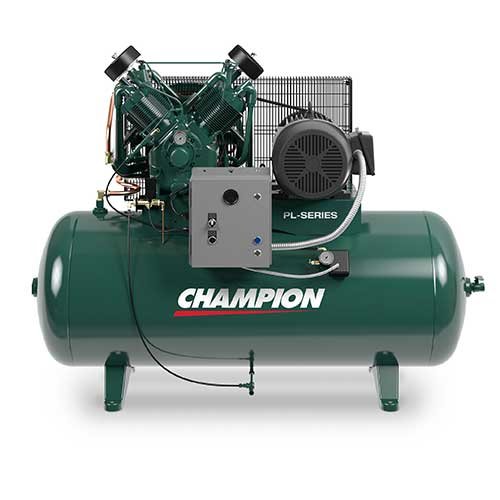

Champion HPL7DF-12 Air Compressor – 7.5HP PL-Series

Champion HPL7DF-12 PL-Series: 7.5-HP Duplex Pressure-Lubricated Industrial System

The Champion HPL7DF-12 PL-Series is a high-redundancy industrial air solution engineered for mission-critical applications where air failure is not an option. Featuring a duplex configuration with two independent 7.5-HP motors and pressure-lubricated pumps mounted on a 120-gallon horizontal ASME receiver, this unit is built for unyielding pneumatic endurance. By integrating this PL-Series duplex system through our platform, you secure maximum operational uptime; the dual-pump architecture ensures that if one unit requires maintenance, the second pump maintains your production flow, effectively eliminating costly downtime.

The technical core of the HPL7DF-12 lies in its twin PL-Series pumps, which utilize a positive displacement oil pump to force filtered lubrication to every critical internal bearing. As a premier performer within our heavy-duty pneumatic air supply lineup, this model delivers a combined 34.6 CFM at 175 PSI. Equipped with an automatic alternator and high-efficiency NEMA-rated motors, the HPL7DF-12 balances the workload between pumps to ensure even wear and a cooler operating temperature. The 120-gallon tank provides a significant air reserve, maintaining total pressure stability for automated manufacturing lines and high-demand tool arrays.

Champion HPL7DF-12 PL-Series Engineering Specifications

• System Configuration: Duplex (Two Independent 7.5-HP Assemblies).
• Pump Technology: PL-Series Full Pressure Lubrication with oil filter.
• Combined Air Delivery: 34.6 CFM @ 175 PSI (High-Volume Output).
• Tank Capacity: 120-Gallon ASME-certified horizontal receiver.
• Lubrication: Positive displacement oil pump for 100% duty cycle protection.
• Control System: Automatic alternator for workload rotation and redundancy.
• Electrical Phase: 208/230/460V Three-Phase industrial grade.
• Construction: Solid cast-iron cylinders and domed piston heads.
• Valving: High-flow stainless steel valves for peak volumetric efficiency.
• Warranty: Industry-leading factory-backed pump protection.

“The Champion HPL7DF-12 has been the perfect insurance policy for our manufacturing plant. The pressure lubrication keeps the pumps running exceptionally cool, and having the duplex redundancy means we never have to stop production for routine maintenance. The 34.6 CFM handles our entire automated line with ease. It is a true industrial workhorse that has paid for itself in saved downtime alone.”

Advanced Durability & Lifecycle Engineering

The Champion HPL7DF-12 excels in harsh environments by utilizing its proprietary pressure lubrication technology to defeat internal friction wear. Unlike standard splash-lubricated units, this system forces clean, filtered oil directly to the crankshaft and connecting rod bearings, preventing premature bearing fatigue even under continuous load. The solid cast-iron construction ensures that the pumps maintain tight tolerances without thermal warping. By balancing the operational hours of each motor via the automatic alternator, Champion ensures a long-term operational lifecycle and a superior ROI for your facility’s air infrastructure.

Strategic Industry Use Cases

• Mission-critical Manufacturing Facilities requiring 100% air uptime.
• Industrial Automotive Assembly and robotic paint lines.
• Large Commercial Laboratories requiring stable, filtered air.
• Heavy Metal Fabrication Shops with multiple high-demand CNC stations.
• Food and Beverage Packaging plants operating on multi-shift schedules.

Secure Your Industrial Air Infrastructure

The Champion HPL7DF-12 PL-Series represents the ultimate in industrial air security, combining duplex redundancy with the legendary durability of pressure-lubricated engineering. By choosing this 120-gallon duplex system, you are investing in a fail-safe air supply that protects your production timeline and scales with your business. Order your Champion HPL7DF-12 from Muldepot.com today to benefit from our nationwide industrial shipping and specialized technical support. Protect your uptime with the strength of the PL-Series Duplex.
