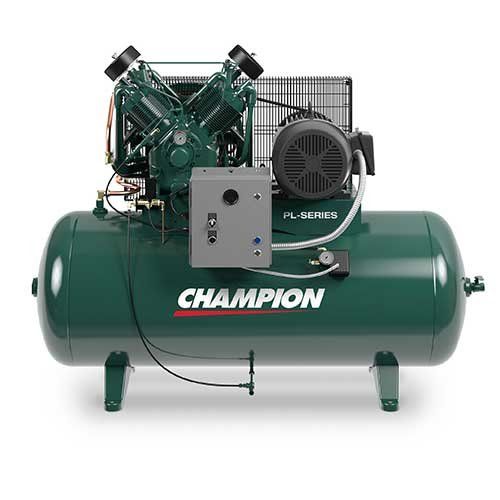

Champion HPL5D-8 Air Compressor – 5HP PL-Series

Champion HPL5D-8 PL-Series 5Hp Compressor: Industrial Duplex Power with Pressure Lubrication

The Champion HPL5D-8 PL-Series 5Hp Compressor is a high-reliability duplex air system designed for specialized industrial workshops and critical facilities where a constant air supply is non-negotiable. Featuring two independent 2.5-HP PL-Series pumps mounted on an 80-gallon horizontal ASME receiver, this duplex infrastructure ensures that your operations never face total downtime. By integrating this pressure-lubricated system into your facility, you secure a redundant pneumatic solution that allows for continuous production even during routine maintenance of a single pump unit.

The engineering core of the HPL5D-8 is defined by the legendary PL-Series pump, which utilizes a positive displacement oil pump to force filtered lubricant directly to all critical bearings. As a premier performer in our professional industrial air compressor collection, this 5-HP duplex powerhouse delivers a combined 17.2 CFM at 175 PSI. The system includes an automatic alternator that balances the workload between both motors, ensuring peak thermal stability and preventing localized mechanical fatigue during heavy-duty, multi-shift cycles.

Technical Engineering Specifications

• Configuration: Duplex System (Two 2.5-HP Independent Pump/Motor Groups).
• Pump Technology: PL-Series Two-Stage Cast Iron with Pressure Lubrication.
• Combined Air Delivery: 17.2 CFM @ 175 PSI.
• Tank Capacity: 80-Gallon Horizontal ASME-certified receiver.
• Lubrication System: Pressure-fed with automotive-style spin-on oil filtration.
• Control Architecture: Automatic Alternator for balanced pump rotation.
• Motor Specification: Dual High-Efficiency NEMA-rated industrial motors.
• Valving: High-flow stainless steel disc valves for extreme durability.
• Warranty: Industry-leading factory-backed pump protection.

“The HPL5D-8 duplex setup provided the peace of mind our lab needed. Having two independent pumps on one 80-gallon tank means we never have to stop our testing if one pump needs an oil change. The pressure lubrication makes these 5-HP units run as smoothly as our much larger industrial machines. It’s the ultimate failsafe.”

Advanced Durability & Lifecycle Architecture

The Champion HPL5D-8 is meticulously engineered to eliminate mechanical friction fatigue by utilizing a proprietary pressure-fed lubrication architecture. Unlike standard splash-lubricated units, this 5-HP duplex reciprocating system ensures every internal component is protected from the first revolution through the following features:

• Positive Displacement Oil Pump: Forces clean, filtered oil to the crankshaft and connecting rod bearings for maximum wear protection.
• Automatic Workload Alternator: Intelligently switches the ‘lead’ pump on every cycle to ensure equal wear across both motor assemblies.
• Solid Cast-Iron Construction: Cylinders and heads designed for extreme thermal stability and long-term structural integrity.
• Spin-On Oil Filtration: Simplifies maintenance while ensuring only debris-free lubricant circulates through the industrial pump.
• ASME Certified Buffer: The 80-gallon tank reduces motor start/stop frequency, significantly extending the life of the magnetic starters.

Secure your facility’s air supply with the Champion HPL5D-8 PL-Series 5Hp Compressor and experience the reliability of industrial-grade duplex technology. Order from Muldepot.com today for specialized industrial shipping and expert technical consultation. Protect your uptime with Champion.
