Champion HPL25-24 Air Compressor – 25HP PL-Series

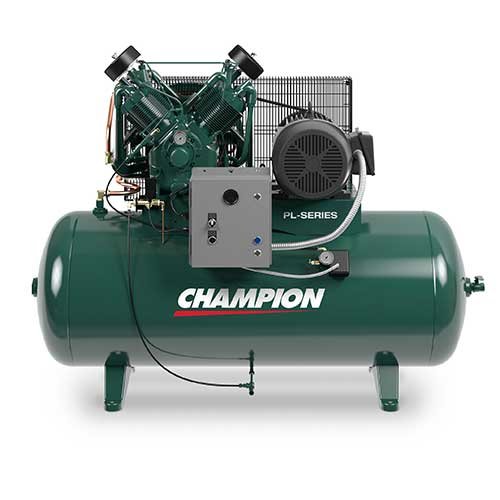

Champion HPL25-24 25HP 240-Gallon Simplex Air Compressor with PL-Series Pressure Lubricated Technology

The Champion HPL25-24 is a heavy-duty industrial air compressor designed to provide relentless performance for large-scale manufacturing facilities. By utilizing a massive 25HP simplex pump paired with a 240-gallon horizontal receiver, this unit offers an immense air reserve for applications requiring high constant CFM flow. Built to rigorous American engineering standards, this series is the premier solution for industries that prioritize long-term durability above all else.

This unit is built upon the renowned PL-Series platform, famous for its pressurized lubrication system. Unlike standard splash-lubricated models, the HPL25-24 ensures that every internal component—such as the crankshaft and connecting rods—receives consistent oil distribution, even under 100% continuous duty cycles. This significantly mitigates the risk of premature wear often seen in industrial units during long, high-heat operational shifts.

Champion HPL25-24 Industrial Performance Breakdown

• Horsepower: 25 HP Single Pump (Simplex) High-Efficiency Motor.
• Air Volume: Stable, high-CFM output for heavy-duty pneumatic tools.
• Tank Capacity: 240-Gallon Horizontal ASME certified tank for maximum air buffer.
• Lubrication System: Pressure Lubricated via a positive displacement oil pump.
• Maximum Pressure: Rated for continuous operation up to 175 PSI.
• Oil Filtration: Features a spin-on automotive-style oil filter for superior pump cleanliness.
• Pump Material: Rugged cast iron construction for maximum vibration damping.
• Cooling System: Large-diameter intercoolers for optimal discharge air cooling.

To be honest, our technical crew views the HPL25-24 as a “simplex giant” because despite using only one pump, the 25HP output is absolutely massive. However, keep in mind that this unit has a significant footprint and requires a solid concrete pad. If you feel a single 25HP pump is a single point of failure and you require redundancy, you can compare these specs against the industrial air compressors in our duplex catalog.

PL-Series Pressure Lube Technological Advantages

One of the aspects that sets the Champion HPL25-24 apart is the use of a positive displacement oil pump that forces lubricant into every bearing surface. This technology is crucial for factories operating in high-ambient temperature regions. This level of reliability is exactly why our comprehensive industrial equipment catalog frequently recommends the PL-Series for 24-hour nonstop applications.

• Gasketless Design: Minimizes the risk of leaks at the cylinder head.
• Disc-Type Valves: Corrosion-resistant steel valves providing high volumetric efficiency.
• Tapered Roller Bearings: Supports heavy radial and axial loads for longer pump life.
• Centrifugal Unloader: Ensures loadless motor starts to save energy and reduce wear.

Recommended Industrial Applications

• Automotive manufacturing facilities with massive robotic pneumatic systems.
• Large-scale sandblasting operations requiring stable air pressure without drops.
• Automated food processing plants with 24/7 production lines.
• Heavy equipment repair shops utilizing multiple 1-inch and larger impact wrenches.

Investing in the Champion HPL25-24 is a strategic move to secure your plant’s productivity. With readily available replacement parts and rugged construction, this unit is ready to become the backbone of your compressed air system. Contact us for a technical consultation regarding installation and the 3-phase electrical requirements for this 25HP powerhouse.
