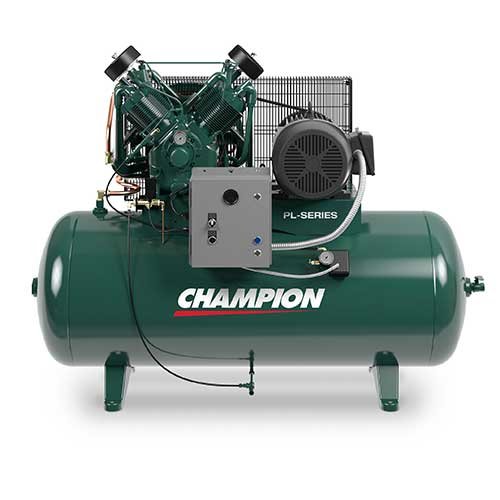

Champion HPL15F-24 Air Compressor – 15HP PL-Series

Champion HPL15F-24 PL-Series 15Hp Compressor: 240-Gallon Pressure-Lubricated Industrial Giant

The Champion HPL15F-24 PL-Series 15Hp Compressor is a premier industrial-grade air solution engineered for facilities that require high-capacity storage and uncompromising mechanical endurance. By mounting the heavy-duty PL-30A pressure-lubricated pump on an oversized 240-gallon horizontal ASME receiver, this unit provides a massive air buffer that stabilizes system pressure and significantly reduces motor cycling during peak demand. Investing in the HPL15F-24 through our platform ensures a robust industrial air infrastructure capable of 100% duty cycles in the most demanding manufacturing, automotive, and specialized high-pressure environments.

At its engineering core, the HPL15F-24 delivers a powerful 46.3 to 51.6 CFM at 175 PSI (configuration dependent) and is uniquely rated for continuous operation up to 250 PSI. As a flagship performer in our stationary industrial air compressor collection, this unit features a positive displacement oil pump that forces filtered lubricant directly to every critical bearing. This “Pressure-Lubricated” architecture ensures peak volumetric efficiency and superior cooling, making it a “True Industrial” choice that far outlasts traditional splash-lubricated models in multi-shift operations.

Technical Engineering Specifications

• Motor Power: 15-HP High-Efficiency NEMA Motor.
• Pump Design: PL-Series Two-Stage Solid Cast Iron.
• Maximum Pressure: Up to 250 PSIG (Industry Leading).
• CFM Delivery: 46.3 – 51.6 CFM @ 175 PSI.
• Tank Capacity: 240-Gallon Horizontal ASME Coded Receiver.
• Lubrication: Pressure Lubricated with Spin-On Automotive Filter.
• Starting System: Hydraulic Loadless Starting for Motor Protection.
• Warranty: 3-Year Pump / 1-Year Package Factory Protection.

“The HPL15F-24 has completely stabilized our shop’s air supply. The 240-gallon tank is a game changer—we can run multiple high-flow tools without the pressure dipping or the compressor constantly turning on and off. The pressure-lubricated pump runs remarkably cool even during our 10-hour shifts.”

Advanced Durability & Lifecycle Architecture

Engineered for mission-critical reliability, the Champion HPL15F-24 utilizes premium components to survive extreme industrial duty cycles:

• Positive Displacement Oil Pump: Provides active, pressurized lubrication to crankshaft and connecting rod bearings, ensuring a lubricant film is present even at startup and under heavy load.
• Massive 240-Gallon Buffer: The large receiver volume acts as a heat sink and moisture trap, significantly reducing the “short-cycling” that kills motors and electrical starters.
• Domed Hemi-Design Pistons: Improves compression efficiency and reduces carbon buildup, leading to cooler operation and higher air delivery per horsepower.
• Babbitt Bearings: Uses replaceable automotive-style Babbitt bearings on the connecting rods for simplified, low-cost long-term maintenance.
• Loadless Start System: A hydraulic unloader prevents the motor from starting against head pressure, reducing electrical inrush and mechanical stress.

Operational Impact: Tool Compatibility & Application

The Champion HPL15F-24 is built to support large-scale pneumatic systems and high-pressure tools:

• Manufacturing Plants: Easily supports multiple Automated Assembly Lines and large pneumatic cylinders simultaneously.
• Heavy Body Shops: Powers multiple Sandblasting Cabinets and high-volume paint booths without pressure drop-off.
• Tire Service Centers: Provides the volume and high-pressure capability (up to 250 PSI) for Large-Bore Earthmover Tires and heavy impact tools.

Upgrade your facility’s reliability with the Champion HPL15F-24 PL-Series 15Hp Compressor and experience the power of a 240-gallon pressure-lubricated system. Order from Muldepot.com today to benefit from specialized heavy-freight logistics and the technical expertise required for high-capacity air systems. Don’t let air shortages stall your production—invest in the Champion Advantage today.
