BelAire 6312VE4 Air Compressor – 20HP Vertical

BelAire 6312VE4 10HP 120-Gallon Vertical Elite Iron Series Two-Stage Compressor (460V/3PH)

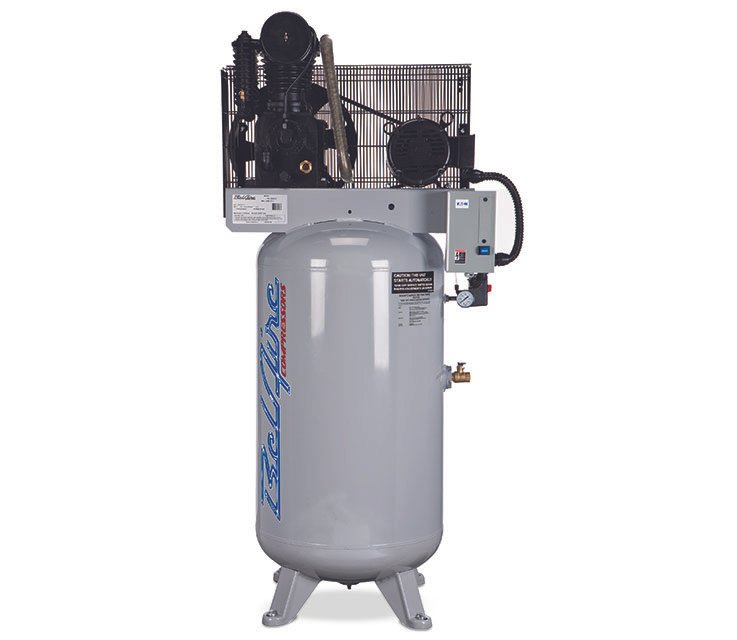

The BelAire 6312VE4 is an industrial-grade vertical air compressor engineered for high-demand environments where space is at a premium but power cannot be compromised. As part of the Elite Iron Series, this 10HP powerhouse features a solid cast iron pump and a high-efficiency motor specifically wound for 460-volt, 3-phase electrical systems. Delivering a massive 35 CFM at 100 PSI, the 6312VE4 is built for 100% continuous duty cycles, making it the premier choice for large-scale manufacturing and heavy automotive facilities.

The “Elite” designation indicates that this unit comes fully equipped with professional-grade upgrades designed to maximize uptime and minimize maintenance. Factory-installed features include an automatic tank drain, a low oil level shutdown switch, and a pump-mounted belt guard aftercooler. These components work in unison to protect the 120-gallon ASME-certified vertical tank from internal moisture corrosion and safeguard the reciprocating pump from lubrication failure during intensive industrial shifts.

BelAire 6312VE4 Technical Performance Breakdown

• Horsepower: 10 HP High-Efficiency Motor (460V 3-Phase).
• Air Delivery: Professional output of 35.0 CFM at 100 PSI / 32.0 CFM at 175 PSI.
• Tank Configuration: 120-Gallon Vertical ASME receiver to maximize floor space.
• Elite Protection: Includes Low Oil Level Switch and Automatic Tank Drain.
• Cooling System: Belt guard aftercooler reduces discharge air temperatures.
• Pump Build: Two-stage solid cast iron construction for vibration damping and longevity.
• Electrical: Pre-wired magnetic starter for safe, high-voltage operation.
• Warranty: Backed by BelAire’s 2-Year bumper-to-bumper factory warranty.

To be honest, our technical crew at MulDepot.com considers the 6312VE4 the “high-voltage workhorse” for modern plants. Finding a vertical 10HP unit that produces 35 CFM is rare enough, but the 460V motor makes it incredibly efficient for large industrial buildings with higher voltage service. If you are comparing this to other high-capacity systems, we encourage you to explore our industrial air compressors section to see how this Elite series stacks up against duplex alternatives.

Elite Engineering for Industrial Durability

The BelAire 6312VE4 is designed to operate at lower RPMs, which reduces friction, heat, and overall wear on the internal components. This slow-speed approach, combined with concentric ring valves and an oversized crankcase, ensures that the compressor maintains peak volumetric efficiency over years of service. Professionals who rely on our full-service industrial equipment catalog often select the 6312VE4 when they need a central air source that requires minimal manual intervention due to its automated Elite features.

• Automatic Tank Drain: Routinely clears condensate to maintain high air quality.
• Low Oil Level Shutdown: Acts as a fail-safe to prevent catastrophic pump damage.
• Vertical Design: Occupies a minimal footprint while offering maximum storage volume.
• Tapered Roller Bearings: Engineered to handle the heavy axial loads of 24/7 production.

Ideal High-Demand Industrial Applications

• Heavy manufacturing plants with dedicated 460V 3-phase power grids.
• Automotive service centers running multiple 1-inch impact tools and lifts.
• Commercial sandblasting booths requiring sustained high-pressure airflow.
• Textile and chemical processing facilities utilizing pneumatic automation.

The BelAire 6312VE4 provides the perfect intersection of high-output performance and automated safety. With its 460V efficiency and space-saving vertical tank, it is a strategic asset for any facility looking to modernize its compressed air system. Contact our experts today for shipping details and electrical compatibility for this 10HP industrial powerhouse.
